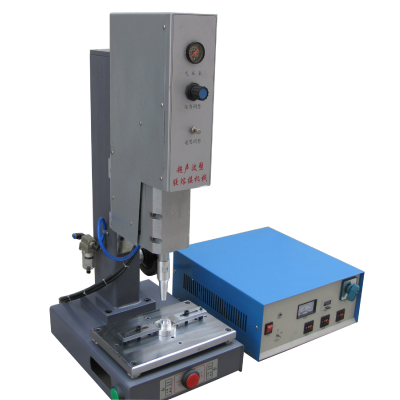

20K~40K Ultrasonic Plastic Welding Machine

20K~40K Ultrasonic Plastic Welding Machine

  • Min.Order Quantity: 1 Set
  • Supply Ability: 100 Sets per Month
  • Port: ANY PORT OF CHINA
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union,Other
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2011-12-30
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  GUANGDONG
  • Brand Name:  HONGHAI
  • Model Number:  HU-20152

20kHz~40kHz ultrasonic plastic welding machine



Application Scope
Applicable for precision liquid filters, dilators, built-in sound equipment, floor mats, clutch forks, door panels, cellphone shell welding, battery shell welding, charger welding, U disk welding, SD card welding, CF card and USB connection, etc. Both 20K ultrasonic welding machine and economical ultrasonic welding machine have a very wide range of applications, with excellent performances.




Product Features
1、The rack is molded through the welding of bending profiles; seamless steel-pipe column, ultra-high column base,
2、Ace Steel amplitude transformer, sturdy and durable,
3、Horizontally adjustable structure of the welding head, easy and fast to adjust,
4、Full-set high-quality assembly of imported components,
5、Single-column electric lift body, easy and convenient to operate



Technical Specifications

Model

HU-20152

HU-20182

HU-20202

HU-20262

Output Power

1500W

1800W

2000W

2600W

Frequency

20KHz

20KHz

20KHz

20KHz

Input Voltage

220VAC

220VAC

220VAC

220VAC

Welding Head Travel

75mm

75mm

75mm

75mm

Welding Time

0.01-9.99sec

0.01-9.99sec

0.01-9.99sec

0.01-9.99sec

Barometric Pressure

0.1-0.7Mpa

0.1-0.7Mpa

0.1-0.7Mpa

0.1-0.7Mpa

Welding Head Cooling
System

Aircooler

Aircooler

Aircooler

Aircooler

Welding Area

Ф170

Ф190

Ф200

Ф220

Dimensions

Machine Size:540*400*1050
Chassis Size:460*475*170

Machine Size:540*400*1050
Chassis Size:460*475*170

Machine Size:540*400*1050
Chassis Size:460*475*170

Machine Size:540*400*1050
Chassis Size:460*475*170

Net Weight

99kg

101kg

102kg

105kg




  • Place of Origin:  GUANGDONG
  • Brand Name:  HONGHAI
  • Model Number:  HU-20152
