Main Application:

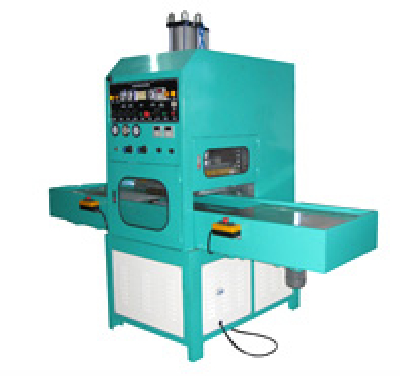

Specialize for the plastic product with need to be welded material together and cut the extra edge out simultaneously. This kind of machine can be also called as HF simultaneous welding and cutting machine.Mainly apply for welding and cutting APET, PETG, GAG, Double side passette,blister cardboard,leather,OPP,PU,EVA and many other environment-friendly materials.

Feature:

product categories

We have divided our high frequency synchronous welding and cutting machines into several different product categories;

1.Automatic turntable high frequency synchronous welding and cutting machine(with/without robot)

2.Automatic sliding way high frequency synchronous welding and cutting machine

3.Manual shuttle way high frequency synchronous welding and cutting machine

4.Double heads high frequency synchronous welding and cutting machine.

5.Manual turntable high frequency only welding machine(with/without robot)

Stable frequency

In strict accordance with the requirements of \\\"Committee on Radio Interference\\\" (CISPR).

Oscillation Frequency: 27.12/40.68 MHZ. With a cycle stabilizer and a device for suppression of leakage of the magnetic flux.

Minimal interferes with the outside equipment.

European model squarness high frequency vibration box to support more realible and stable in output.

Spark restrains

With NL-5557 high sensitivity spark suppression circuits, Accurate detection of the imbalance current. Can instantly cut off the supply of the oscillation loop to restrain the sparks to protect the mold, raw materials and products. At the same time warning lights will send you the alert.

Strong out-put power

Using aluminum material with good quality and low-loss coaxial resonator. More stable output high frequency.

Stronger radiation shielding. A good output waveform. The maximum pressure up to 50T, more efficiency.

Oscillation current regulation

Different output power based on product size and thickness is available.

You can control the welding and guarantee the homogeneity of the quality

Welding mould(die)

High frequency machine must work with high frequency welding mould. More than getting perfect welding and cutting effect,we do some special treatment on the welding die by ourselves to make it more durable. Our client can use it for about 10 million times without any replacement of the down mould.

Security

With over-voltage, over-current protection devices, can automatically cut off the supply to protect the oscillation tube and the rectifier, at the same time avoid frequency drift.

Service：

1. Recommend equipment of top choice based on your requirements for product;

2. test for client freely, and send the sample back for checking

3. Providing assistance in manufacturing and modifying tools;

4. OEM/ODM accepted.

5. Warranty for one year
