Main Application:

Mainly used to need high frequency welding must be synchronous cutting processing the products again at the same time, high frequency machine working principle is to use recanalization high frequency welding machine is equipped with a pressure device is cut off at the same time, basically is completed at the same time, so the high frequency synchronization fusing machine, also known as high-frequency fusing machine, fusing machine, high frequency synchronous cutting machine, high frequency cutting machine.Applicable to large areas of high frequency welding cutting, toilet seat forming, large floor mat forming, APET, PETG, GAG environmental protection materials such as high frequency plastic box line pressing soft line, can also be used to APET, PETG, GAG environmental protection material of reversible blister blister sealing toothbrushes, blister paper card packaging, sealing, and EVA cloth leather, leather, OPP, PU, strap, condole belt, such as hot water bag, warm bag need to weld and synchronous fuse products.

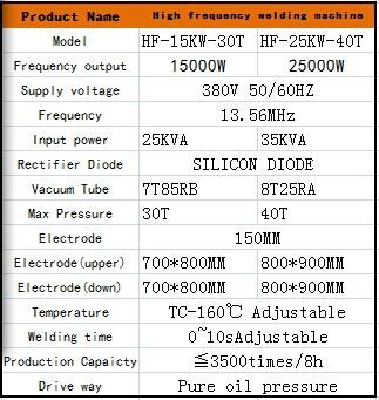

Specifications:

★High-frequency fusing machine is usually divided into: Automatic rotating disc high-frequency fusing machine (optional automatic picking manipulator), automatic sliding table high-frequency fusing machine, manual push disc fusing machine, double head type high-frequency fusing machine, disc high frequency synchronization fusing machine etc.Also known as high-frequency fusing machine, fusing machine, high frequency synchronous cutting machine, cutting machine, high frequency of our company are specialized in the production.The machine adopts low loss of European standard coaxial resonator at high frequency, high frequency output power strong, can with the fastest time make welding products, greatly improve the production

★Sliding table frequency fusing machine adopt Taiwan motor drive, location positioning precision.Fusing machine equipped with NL - 5557 high frequency spark protection system, high sensitivity, prevent loss of high frequency mold.With frequency stabilizer and high frequency high frequency shielding device, the high frequency interference to a minimum, avoiding interference waves.At the same time can be avoided by frequency drift caused by improper operation, make the electrodes and the material damage to the minimum at the same time warning lamp also works simultaneously.

★Oscillation frequency in line with the international standard industrial band, high frequency machine by high Q value vacuum electron tube oscillator produces high frequency electromagnetic fields, make the processing of plastic in the high frequency electric field between the electrodes, make its molecules produces friction violent campaign, under the pressure of the mold to get the fusion effect.The high-frequency fusing machine adopts H gantry structure, around the bidirectional automatic sliding table, between continuous push mold, efficient operation.

Welding mould (die)

We can make form a complete set of mold for using machine, the mold high quality and durable.
